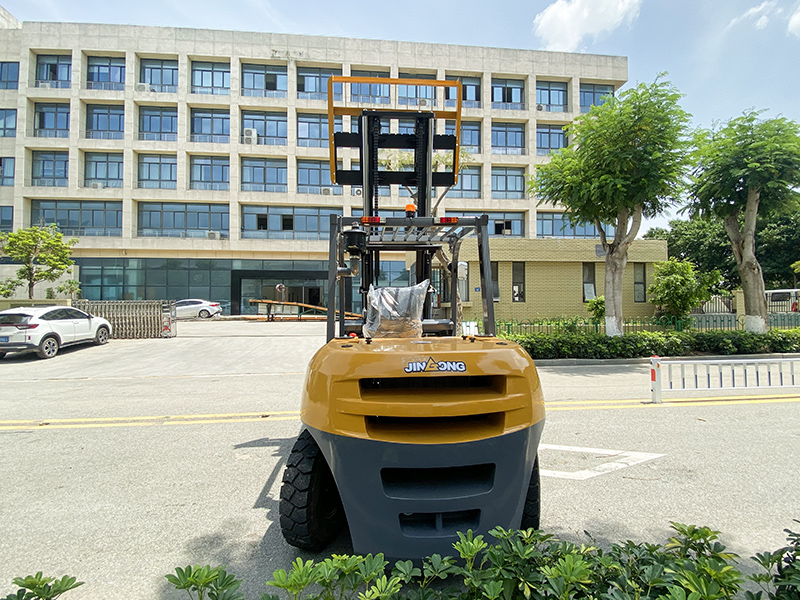

Forklift Truck
Most professional construction machinery manufacture since 1979-JGM Machinery
Most professional construction machinery manufacture since 1979-JGM Machinery
Product description
1. High Quality
- Adopt gradeability improving style electronic hydraulic transmission, compare with other models: efficiency 5% improved, climbing torque 8% increased, noise 3~5dB reduced, thermal equilibrium temperature 8-10°decreased；
- The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle；
- Load sensing priority steering hydraulic system is adopted to reduce pressure loss of the hydraulic system, save energy and improve operation comfort.
2. High Security
- Introducing advanced technology from Germany, the unique single chain has greatly enhanced the front view while working.
- All car LED lights, high brightness, long life, energy saving, and environmental protection.
3. High Comfort
- The new suspension system, adjustable seat, allowing the driver to feel more comfortable and reducing fatigue during long operations;
- The combined color instrument has strong human-machine interaction and timely and accurate feedback on the running state of vehicles.
- Spacious control space, comfortable seats, enjoy the pleasure of riding.
4. Rich Options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two-stage free lift mast, three-stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
Main Parameters
Model |
UNIT |

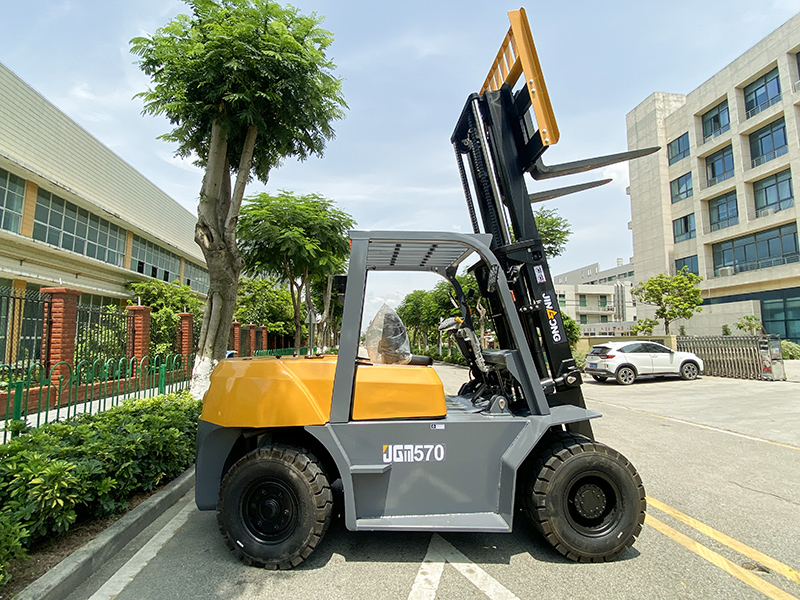

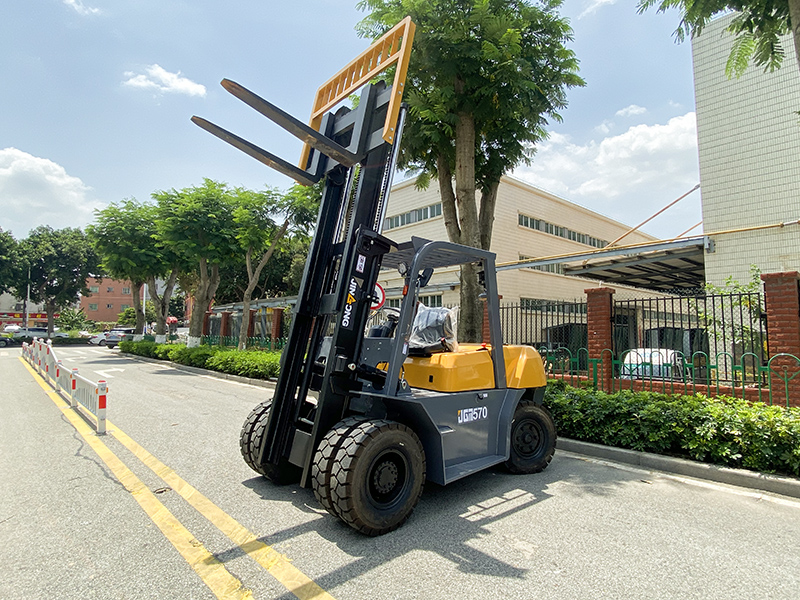

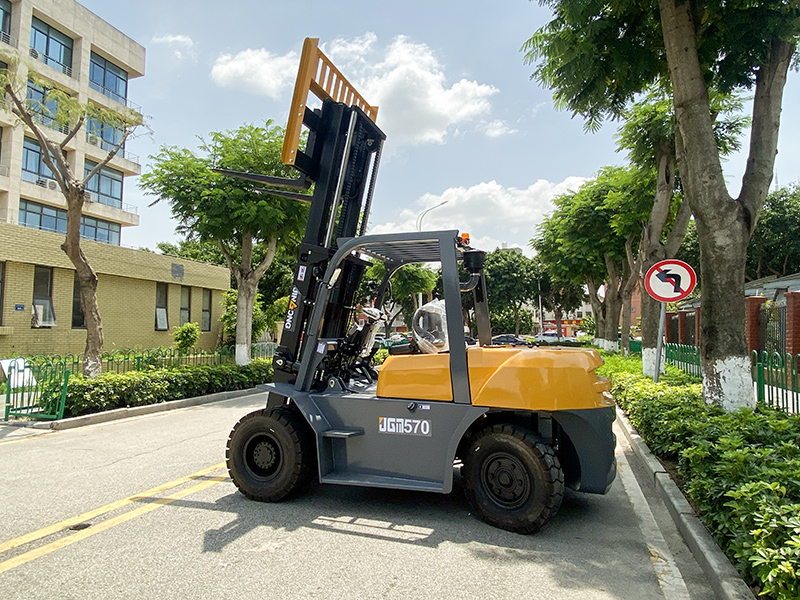

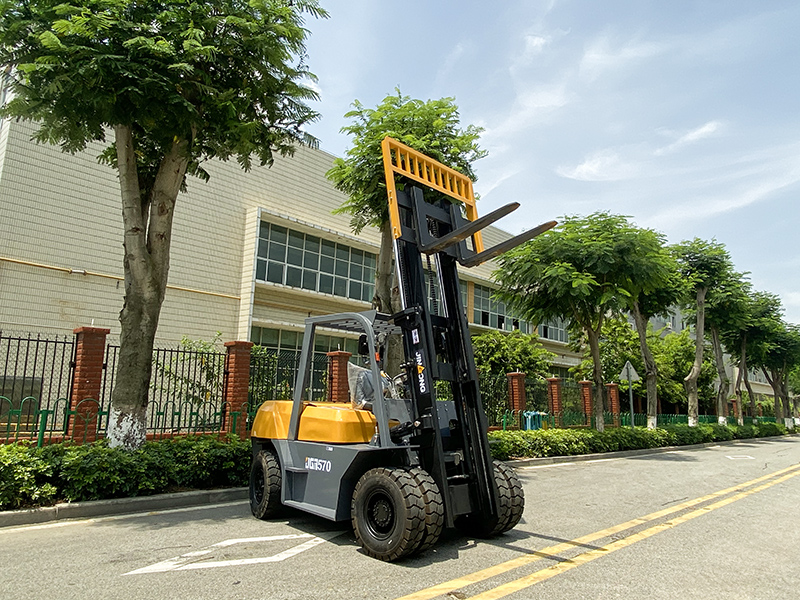

JGM570 |
||||
Specifications |
Power Unit |
|
Diesel |
|||
Operator Type |
|
Driver/seat |
||||
Transimission Bo× Type |
|
Electronic hydraulic transmission |
||||
Rated Capacity |
kg |
7000 |
||||
Load Center |
mm |
600 |
||||
Ma×.Lifting Height |
mm |
3000 |
||||
Tire Type |
|
Pneumatic Tyre |
||||
Tire Number |
Front |
|
4 |
|||
Rear |
2 |
|||||
Tire Size |
Front |
|
8.25×15-14PR |
|||
Rear |
|
8.25×15-14PR |
||||
Performance× |
Lifting Speed |
Loaded |
mm/s |
450 |
||
Unloaded |
500 |
|||||
Lowering Speed |
Loaded |
mm/s |
500 |
|||
Unloaded |
450 |
|||||
Travelling Speed |
Loaded |
km/h |
25 |
|||
Unloaded |
30 |
|||||
Ma×.Gradeability (Loaded) |
% |
27 |
||||
Ma×.Drawbar Pull (Loaded) |
kg |
5400 |
||||
Mast Tilting Angle (Fwd/Bwd) |
deg |
6/12 |
||||
Free Lifting Height |
mm |
155 |
||||
Turning Radius |
mm |
3370 |
||||
Dimensions |
Overall Length (with fork) |
mm |
4870 |
|||
Overall Width |
mm |
2000 |
||||
Overhead Guard Height |
mm |
2480 |
||||
Fork Size (L×W×T) |
mm |
1220×150×65 |
||||
Mast Height (Fork lowered) |
mm |
2500 |
||||
Battery (Voltage/Capacity) |
V/Ah |
2×12/90 |
||||
Truck Weight |
kg |
9200 |
||||
Fuel Tank Capacity |
L |
135 |
||||
Engine |
Brand |
|
ISUZU |
MITSUBISHI |
CHAOCHAI |
|
Model |
|
6BG1 |
S6S-T |
6102 |
||
Rated Power |
kw/rpm |
82.3/2000 |
67.6/2300 |
80.8/250 |
||
Rated torque |
n-m/rpm |
418/1500 |
293/1700 |
354/1650 |
||
Number Of Cylinder |
|
6 |
6 |
6 |
||
Displacement |
|
6.49 |
4.99 |
5.78 |
||
Note:Specifications are subject to changes by the manufacturer without prior notice.
