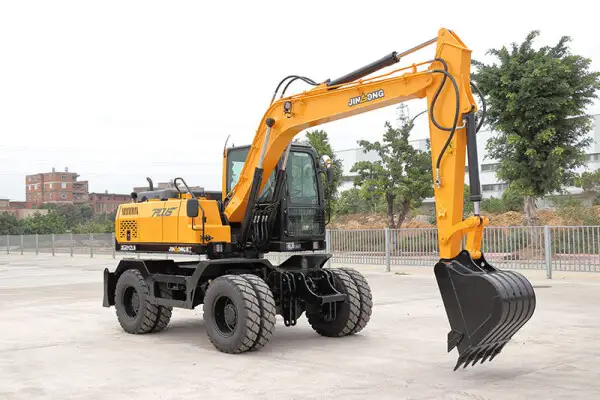

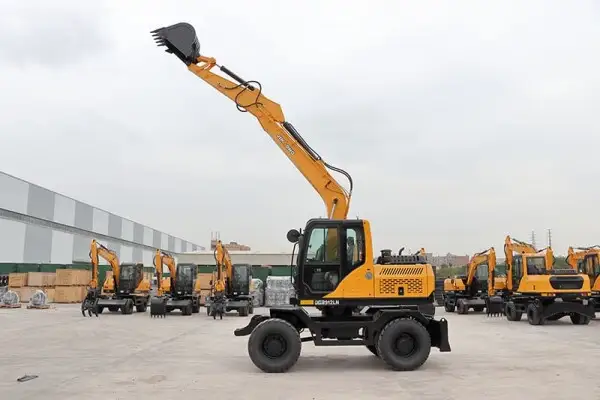

Wheel Excavators
Most professional construction machinery manufacture since 1979-JGM Machinery
Most professional construction machinery manufacture since 1979-JGM Machinery
Product description
1. Engine
Electric-controlled direct jet engine updated based on 4-cylinder Yuchai power engine that has been verified by the market and meets China's latest emission standards. The engine features low fuel consumption, high combustion efficiency and outstanding durability.
2. Reliable chassis
Reasonable structure design improves durability and stability of working mechanisms. The plate thickness at key position is enhanced and the structural components are robust and durable.
3. Hydraulic system
1）High quality load sensitive system;
2）The multi-way valve has greater strength and faster speed.
3）The combined action time of rotating and boom lifting is shorter and the operation efficiency is higher.
4）Hydraulic locks are installed on the bulldozer blade and the outrigger cylinder to prevent internal leakage of the cylinder.
4. Safe operating system
1）Parking mode, four wheels locked, the whole machine is more stable during operation.
2) Electronic automatic parking can realize automatically park at the same time after the engine is turned off, thus ensuring parking safety.
5. Cab
1）Electric shift, easy to operate.
2）The instrument is installed on the side, which can comprehensively monitor the working state of the whole machine.
3）Humanized design of the cab, beautiful and generous, broad vision, exquisite interior decoration.
4）Direction machine swing adjustment range is large, the whole machine comes standard with air conditioning, the driver is more comfortable to operate.
6. Power system
1) The engine is using T3 engine, and the whole engine has strong power performance.
2) The high and low temperature areas of the engine are separated by clapboards, and the intake air of the engine is in the low temperature area, so that the heat dissipation effect of the whole engine is better.
Main Parameters
Items |
Parameters |
Operating weight (kg) |
10500 |
Bucket capacity (m3) |
0.4 |
Rated power/speed (kW/rpm) |
62.5/2200 |
Displacement (ml) |
2982 |
Max torque (N.M/rpm) |
340 |
Max digging force (kN) |
50 |
Gradeability (°) |
27 |
Swing speed (rpm) |
10 |
Travel speed (km/h) |
0~25 |
Overall dimension (mm) |
6695×2400×2970 |
Min. ground clearance (mm) |
410 |
Min. Tail Turning radius (mm) |
2050 |
Wheelbase (mm) |
2505 |
Wheel tread (mm) |
1860 |
Max digging height (mm) |
5630 |
Max digging depth (mm) |
4120 |
Max digging radius (mm) |
7250 |
Max dumping height (mm) |
5630 |
Max ground digging distance (mm) |
6240 |
Max. Soil depth(dozer) |
95 |
Max. Soil height(dozer) |
355 |
Boom length (mm) |
4000 |
Arm length( mm) |
2100 |
Dozer blade width (mm) |
2360 |
Tire |
9.0-20 |
Diesel tank capacity (L) |
125 |
Hydraulic tank capacity (L) |
193 |
