1. Engine
Electric-controlled direct jet engine updated based on 4-cylinder Yuchai power engine
that has been verified by the market and meets China's latest emission standards. The engine features low fuel
consumption, high combustion efficiency and outstanding durability.
2. Reliable chassis
Reasonable structure design improves durability and stability of working mechanisms.
The plate thickness at key position is enhanced and the structural components are robust and durable.
3. Hydraulic system
1) High quality load sensitive system;
2) The multi-way valve has greater strength and faster speed.
3) The combined action time of rotating and boom lifting is shorter and the
operation efficiency is higher.
4) Hydraulic locks are installed on the bulldozer blade and the outrigger cylinder
to prevent internal leakage of the cylinder.
4. Safe operating system
1) Parking mode, four wheels locked, the whole machine is more stable during operation.
2) Electronic automatic parking can realize automatically park at the same time after
the engine is turned off, thus ensuring parking safety.
5. Cab
1) Electric shift, easy to operate.
2) The instrument is installed on the side, which can comprehensively monitor the
working state of the whole machine.
3) Humanized design of the cab, beautiful and generous, broad vision, exquisite
interior decoration.
4) Direction machine swing adjustment range is large, the whole machine comes
standard with air conditioning, the driver is more comfortable to operate.
6. Power system
1) The engine is using T3 engine, and the whole engine has strong power performance.
2) The high and low temperature areas of the engine are separated by clapboards,
and the intake air of the engine is in the low temperature area, so that the heat dissipation effect of the
whole engine is better.

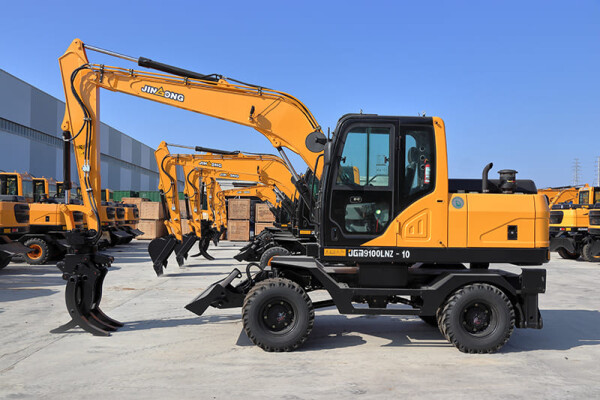

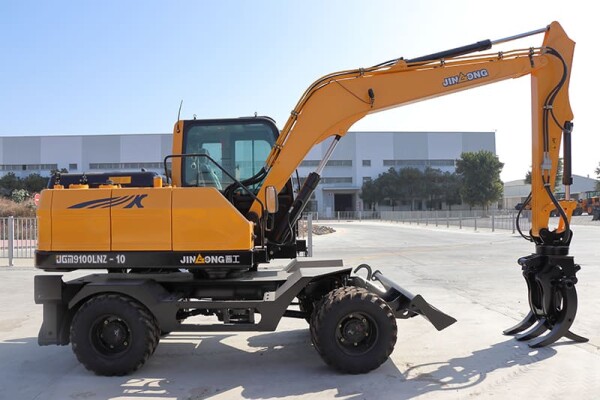

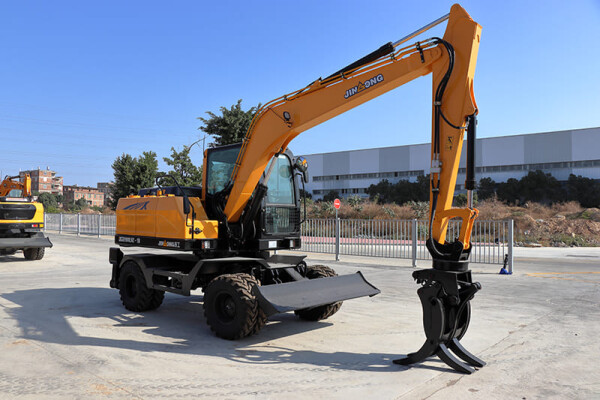

JGM9100LNZ-9 |
|
Item |
Parameters |
Unit |
Operating weight |
8000 |
kg |
Grip width |
1360 |
mm |
Max.lifting weight |
1100 |
kg |
Overall length |
7300 |
mm |
Tyre width |
2200 |
mm |
Cab height |
2910 |
mm |
Rated power/rated speed |
62.5/2200 |
kW/r/min |
Displacement |
3.621 |
mL |
Max. torque |
340 |
N∙m |
Travel speed |
0-26 |
km/h |
Grading capacity |
30 |
° |
Swing speed |
11 |
rpm |
Ground clearance |
340 |
mm |
Min. Tail Turning radius |
2040 |
mm |
Wheel base |
2380 |
mm |
Tread |
1670 |
mm |
Max.hoisting height |
8040 |
mm |
Max.hoisting depth |
4700 |
mm |
Max.hoisting radius |
7580 |
mm |
Max. dumping height |
5480 |
mm |
Max. Soil depth(dozer) |
220 |
mm |
Max. Soil height(dozer) |
560 |
mm |
Boom length |
4000 |
mm |
Arm length |
2100 |
mm |
Dozer width |
2200 |
mm |
Tyre type |
8.25-16 |
— |
Fuel tank capacity |
140 |
L |
Hydraulic tank capacity |
140 |
L |
Note:Specifications are subject to changes by the manufacturer without prior notice.
