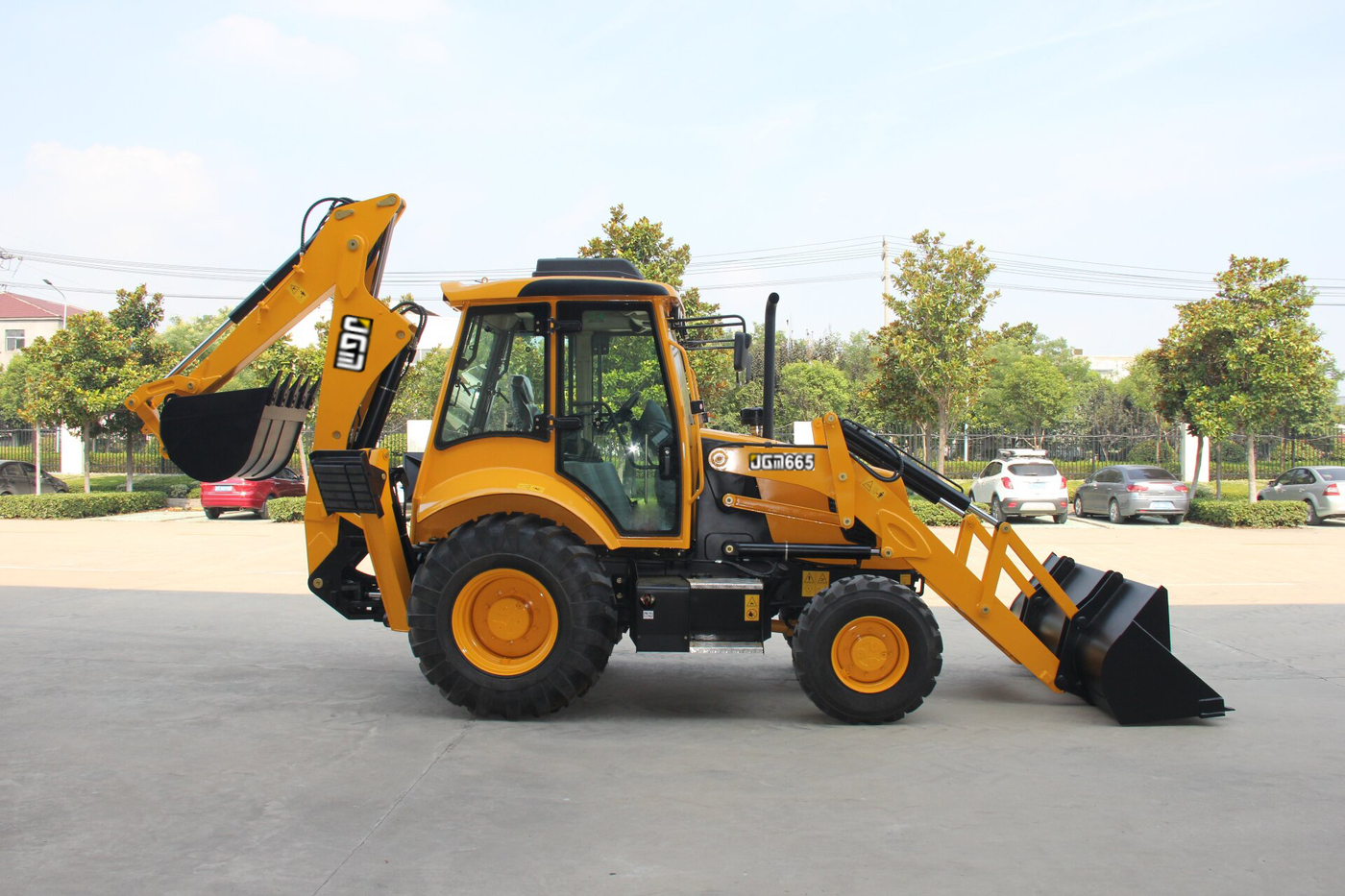

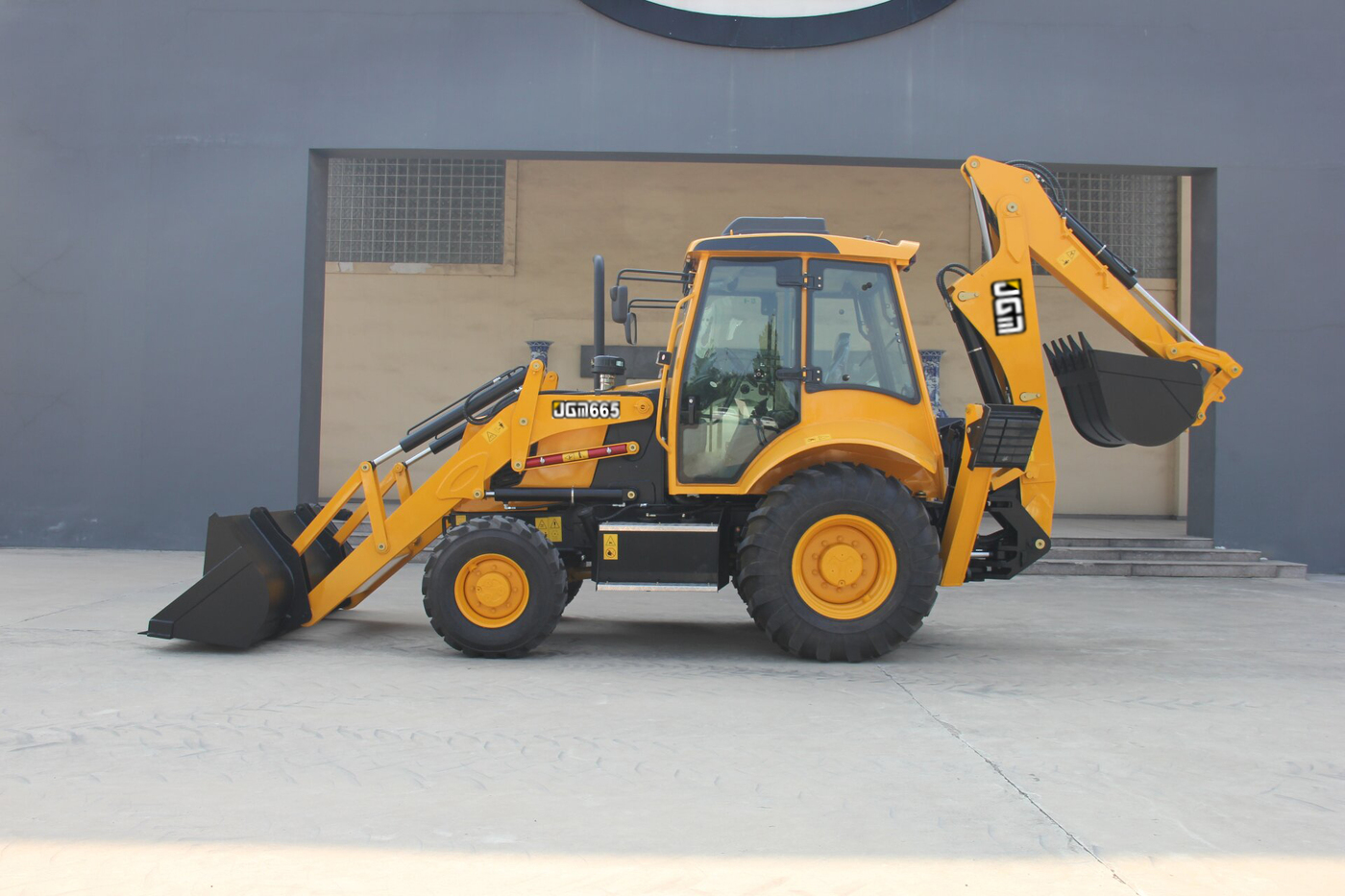

Jingong Backhoe Loader JGM665

Jingong's Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications.

SEND INQUIRY NOW

Product Details

Product description

1. Special backhoe loader chassis, compact structure and reasonable layout;

2. Equipped with a fully enclosed ROPS cab with a wide field of vision, the whole machine has a beautiful appearance, and the leading design of the all-round humanized control system makes the whole machine operation more reasonable and comfortable;

3. The engine adopts Cummins engine, which is environmentally friendly and powerful, which greatly improves the fuel economy and work efficiency, and greatly reduces the customer's use cost; a variety of domestic and foreign well-known brand engines can be selected.

4. The original imported Italian CARRARO professional backhoe loader transmission system is adopted, and the hydraulic system adopts domestic well-known brands to ensure the stability of product quality, and the performance of the whole machine reaches the international advanced level;

5. Excellent excavation and loading performance brings value-added returns to customers;

6. The original Italian CARRARO drive axle with a differential lock and wet brake ensures the traction performance of the whole machine and the safety performance of the whole vehicle; the design of the swing steering axle, the steering angle and the swing angle are large so that the whole vehicle has better passability. Service and parking brakes adopt maintenance-free, self-adjusting, fully adjustable wet brakes;

7. Two-wheel and four-wheel drive can meet the needs of customers;

8. The whole machine can be equipped with a variety of attachments according to customer needs.

Performance parameters

Model		JGM665
Operating weight(T)	kg	8200
Transport Dimensions (LWH )	mm	5920×2250×3770
Wheelbase	mm	2200
Min. Ground Clearance	mm	300
Bucket Capacity (Excavating bucket)	m3	1.0
Breakout Force	KN	38
Loading Lifting Capacity (Excavating bucket)	KG	2500
Bucket Dumping Height	mm	2742
Bucket Dumping Distance	mm	925
Digging Depth	mm	52
Backhoe Capacity	m3	0.3
Max. Digging Depth	mm	4082/4500
Swing Angle of Excavator Grab	˚	190
Max. Traction	KN	39
Engine
Model		CUMMINS 4BTA3.9—C100
Type		In-Line Direct injection Four-Stroke and Injection Combustion Chamber
Rated Power	KW	74
Min. Fuel Consumption		≤216g/km.h
Rated Speed	rpm	2200r/min
Displacement	L	3.9
Consumption		Euro 2
Max Torque/Speed		≥410N.M/1800r/min
Transmission System
Model		TLB1-4WD
Type		Single-stage Three Elements
Max. Efficiency	%	84.4
Inlet Pressure	Mpa	0.5
Outlet Pressure	Mpa	1.1—1.3
Cooling Method		Oil-cooling Pressure Circulation
Gearbox
Type		Fixed Shaft Power Transmission
Oil Pressure of Clutch		1373Kpa—1569 Kpa
Gears		four Gears Ahead, four Gears Astern
Max. speed	Km/h	38Km/h
Hydraulic system
Digging Power of Excavator Grab	KN	46.5
Digging Power of Dipper	KN	31
Bucket Lifting Time	S	6.8
Bucket Lowering Time	S	3.1
Bucket Discharge Time	S	2.0
Tyre
Model		14-17.5/19.5L-24
Pressure of Front wheel	Mpa	0.55
Pressure of Back Wheel	Mpa	0.23
Brake system
Service Brake		wet-type, internal type, self-regulation, self-balance.
Emergency Brake		spring brake, terminating brake through hydraulic
Steering System
Model of Steering Device		BZZ5-250
Steering Angle	˚	±33
Min. turning radius	mm	6950
Pressure of the system	Mpa	12
Axle
Brand		Carraro
Rated dynamic/static Load of the front axle	t	9/22.5
Rated dynamic/static Load of the rear axle	t	7.5/18.75

Note: Specifications are subject to changes by the manufacturer without prior notice.
